- Product Description
-

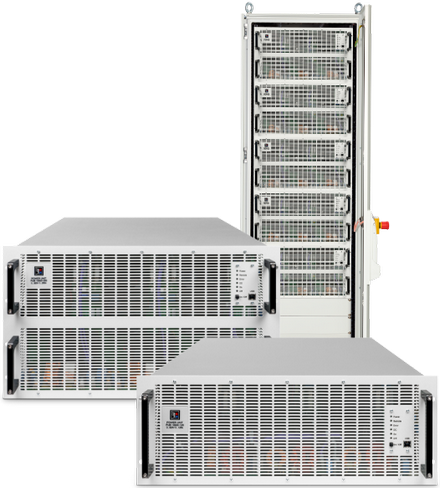

EA-10000 Industrial Series
Traditional, Bi-Directional, And Reactive
Powerful Performance
● The 6u Series Has A Power Of Up To 60 Kw And Includes 21 Models
● The 4u Series Has A Power Of Up To 30 Kw And Includes 29 Models
● Choose From 50 Models To Meet Specific Application Needs
Powerful Rack Performance
● 42u High 19" Rack For Integrating 300 Kw Systems
● Up To 13 Racks Can Run 64 Units Of 60 Kw In Parallel
● Achieve A Maximum System Of 3.84 Mw For High-Power Applications
Powerful Efficiency
● Run A High-Power System With Less Equipment
● Reduce The Rack Space Required
● Reduced Operating Costs
EA-10000 Series Industrial 6U Series
New 6u Stand-Alone:
● Programmable Dc Power Supply
Ea-Pu 10000 4u/6u Series● Programmable Bidirectional Dc Power Supply
Ea-Pub 10000 4u/6u Series● Regenerative Electronic Load
Ea-Pul 10000 4u/6u SeriesRack power up to 300 kW:
● The 300 Kw System Requires Only A 42u High 19" Rack With A Footprint Of Only 0.6 Square Meters
● A System Can Be Integrated By Up To 13 Racks And Run 64 Units Of 60 Kw In Parallel
● Achieve A Maximum System Of 3.84 Mw For High-Power Applications
● All Performance Classes Of The 10000 Series Can Be Operated In Parallel
● Configure A High-Performance System With Fewer Devices
● Save Important Rack Space
● Small Size, High Power
Future-Proof Your Application：
● Battery And Fuel Cell Testing
● Battery And Solar System Simulation
● The Battery Is Fully Discharged And Recycled
● Fail-Safe Power Supply For Electrolysis Plants
● Sustainable Power Electronics For Aerospace Applications
● Can Be Used In Ate Systems And Automated Process Control Systems
Technical Highlights:：
● Wide range of DC input/output
● Digital (FPGA) control DC input/output U-I-P-R
● Advanced silicon carbide technology
● Front LED indicator to indicate device status
● Optional stainless steel water cooling device
● Wider range of AC power input (380V-480V three-phase AC)
● Built-in interfaces: Ethernet, USB, analog interfaces
● Optional interfaces: CAN, CANopen, EtherCAT, RS232, Profibus, Profinet, Modbus, Ethernet
Efficiency and sustainability strengthened：
● Master-Slave Bus And Shared Bus
Control A Multi-Device System As Easily As If It Were A Stand-Alone Machine● The Energy Recovery Rate Is As High As More Than 96%.
Regenerative Load Operation Returns Energy To The Grid● Auto-Ranging Function (Wide Range Output Characteristics)
Automatic Switching Principle● Optional: Function Generator, Etc
Ramp Function, Arbitrary Generator, Lut, Integrated Pv Characteristic Curve● Abundant Models To Meet The Needs Of Different Applications
21 Models In The 60kw Series And 29 Models In The 30kw SeriesOptions：
● Emergency stop device (mechanical and electrical safety EN60204-1)
● Grid Monitor (ENS)
● Insulation monitor
● DC output copper bar wiring device
EA-10000 Industrial Series Model 6U
60 kW，21 productsEA-10000 Industrial Series 4U model
30 kW，29 products
